10U Rack proLINE 300 mm Usable Depth

was €328.44 Special Price €193.97 €163.00

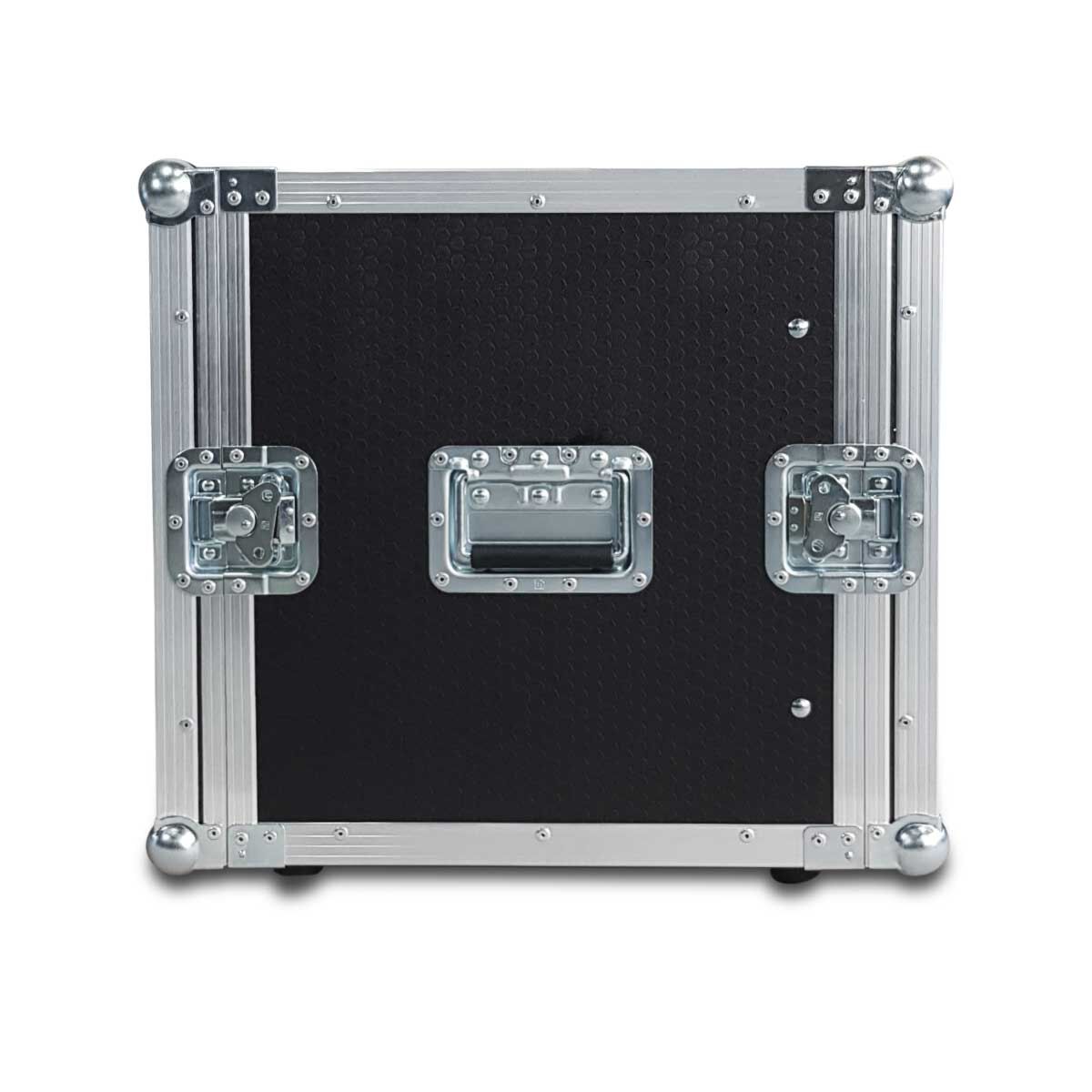

10U 19″ Rack proLINE, 300 mm usable depth, built from 7 mm birch plywood, with 2 lids and 2 recessed handles on the sides, to protect your equipment during usage, transport and storage.
Availability: Dispatches in 8-12 business days
SKU
10U-DDR-PRO-ST-300-45

10U 19″ Rack proLINE, 300 mm usable depth, built from 7 mm birch plywood, with 2 lids and 2 recessed handles on the sides, to protect your equipment during usage, transport and storage.

Do you need different specifications? You can always check out our range of custom double door racks.

SPECIFICATIONS

  • 300 mm Usable Depth
  • 45 mm Inside Lid Depth
  • Built from Black 7 mm thick Birch Plywood, Hexa Design Coated
  • 30×30 mm Aluminium Extrusions
  • Heavy Duty Galvanised Steel Corners
  • 2 Heavy Duty Handles, Recessed, Galvanised Steel
  • 4 Heavy Duty Butterfly Catches, Recessed, Galvanised Steel
  • Front Mounted Heavy Duty Infinite Rack Strips with Fittings and Screws included
  • 4 Rubber Feet

DIMENSIONS & WEIGHT

(rubber feet included)

Dimensions (WxDxH): 554 x 458 x 504 mm
Weight: 12.30 kg

QUALITY COMPONENTS AND ATTENTION TO DETAIL

Our flight cases are designed and manufactured by engineers with relevant experience in the field of technical equipments, using only top quality components from Adam Hall and Penn Elcom. The production process is mostly automated and assisted by the CNC technology, giving a precise technological flow. With the help of automation, customised software and our more than 20 years of experience in production, we can offer you the best solutions for protecting your equipments, even in eXtreme conditions.
Flight Case Top Quality Components
Rack Usable Depth

RACK USABLE DEPTH

This rack comes with a 300 mm usable depth. The rack usable depth should be at least the same as the depth of your deepest equipment. If you want to leave some cables connected, you should add them to the depth (usually, 70 mm is enough for most of the connectors). The rack usable depth doesn't include the lids and is measured between the front and back rack rails or the inside edge of the closing hybrid if no back rack rail is mounted.

RACK LIDS DEPTH

Our rack comes with a 45 mm depth for the front and back lids. The lid depth is measured on the inside of the lid. The lids are identical so you can freely switch them between the front and back of the rack. When planning your lid depth, you should pay attention to your equipment. If it has knobs or handles on the front or if you need more space for the cables connected at the back of the equipment, you should choose a rack with enough lid depth for them.
Rack Lid Depth
Rack Recessed Handles

HEAVY DUTY RECESSED HANDLES ON THE SIDE

This rack comes with 2 heavy duty sprung steel handles mounted on the sides. The handles have a strengthened top plate and black full width PVC grip.

HEAVY DUTY BUTTERFLY CATCHES

This rack comes with 4 heavy duty butterfly catches, recessed, galvanised steel. Our butterfly catches have a push-down mechanism that lifts the hook out of the keeper plate on opening and leads it back into the dish on closing. This offers an ideal handling and minimises risk of injury and damage.
Rack Butterfly Catches
Rack Rubber Feet

RUBBER FEET

Our rack comes with 4 rubber feet that protect the edges and prevent slipping.
