2U Rack ecoLINE Medium

€114.24 €96.00

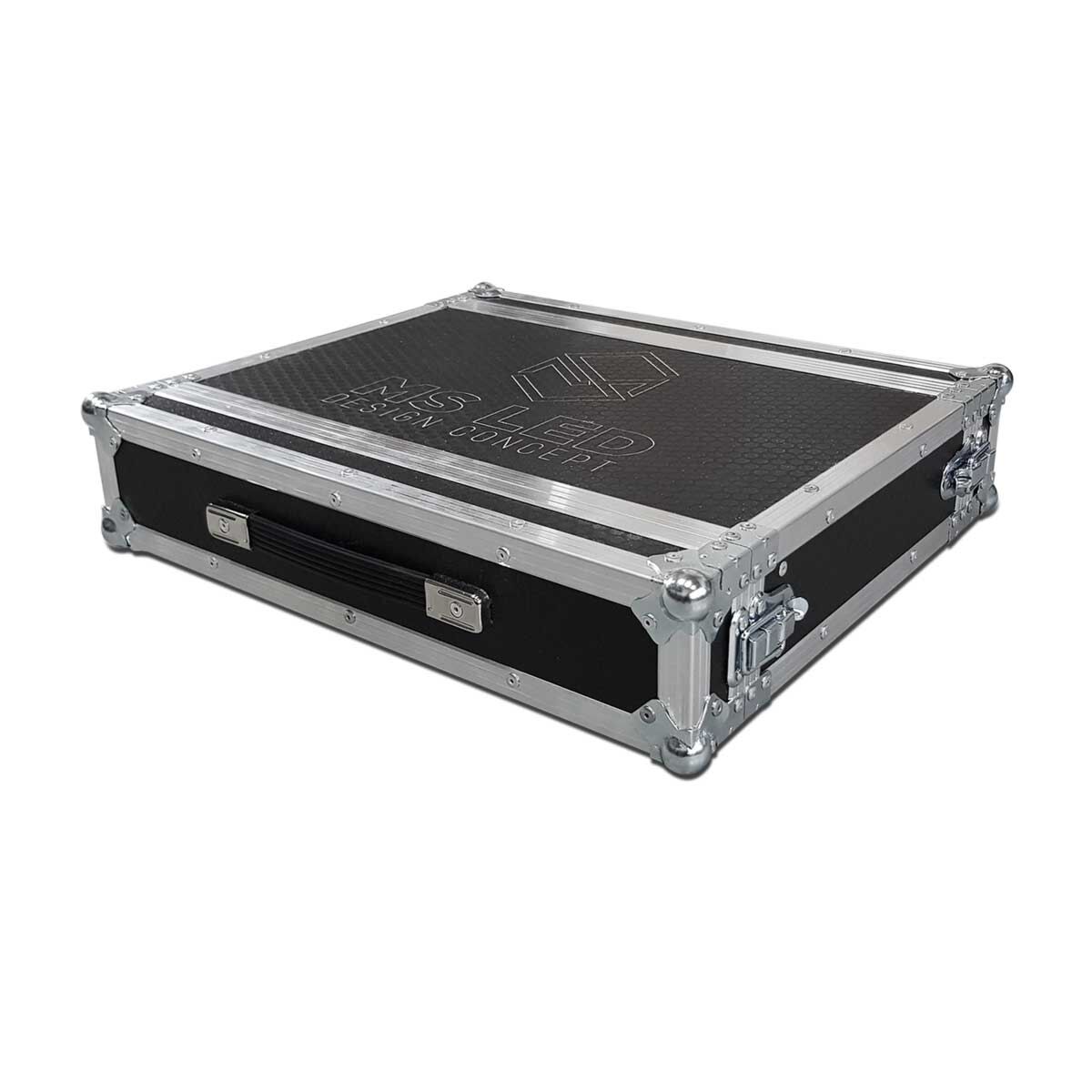

2U 19″ Rack ecoLINE, medium version (400 - 550 mm usable depth), built from birch plywood, with two lids and one handle on the front lid, to protect your equipment during usage, transport and storage. Customise it as you need by choosing from the options below:
Availability: Dispatches in 8-12 business days
SKU
2U-DDR-ECO-MEDIUM

2U 19″ Rack ecoLINE, medium version (400 - 550 mm usable depth), built from birch plywood, with two lids and one handle on the front lid, to protect your equipment during usage, transport and storage.

SPECIFICATIONS

  • Built from Birch Plywood or SolidLite PP Astroboard
  • 22×22 mm Aluminium Extrusions
  • Heavy Duty Galvanised Steel Corners
  • 1 Plastic Handle with Steel Reinforcement on the Inside Mounted on the Lid
  • 4 Large Galvanised Steel Drawbolts, Padlockable (padlock not included)
  • Heavy Duty Infinite Rack Strips with Fittings and Screws included

EXTRA OPTIONS

  • 4 Rubber Feets / 2 Plywood Skids 15 mm
  • Self Adhesive Label / Recessed Label Dish / Recessed Label Dish with Self Adhesive Label
  • Custom Engraving

DIMENSIONS & WEIGHT

* measured for standard size

Standard:
Dimensions (WxDxH): 554 x 538 x 131 mm
Weight: 5.90 kg

With Rubber Feets / Plywood Skids:
Dimensions (WxDxH): 554 x 538 x 136 mm
Weight: 6.50 / 7.00 kg

QUALITY COMPONENTS AND ATTENTION TO DETAIL

Our flight cases are designed and manufactured by engineers with relevant experience in the field of technical equipments, using only top quality components from Adam Hall and Penn Elcom. The production process is mostly automated and assisted by the CNC technology, giving a precise technological flow. With the help of automation, customised software and our more than 20 years of experience in production, we can offer you the best solutions for protecting your equipments, even in eXtreme conditions.
Flight Case Top Quality Components
Rack Usable Depth

RACK USABLE DEPTH

The rack usable depth is given by your longest equipment. If you want to leave some cables connected, you should add them to the depth (usually, 70 mm is enough for most of the connectors). The rack usable depth doesn't include the lids and is measured between the front and back rack rails or the inside edge of the closing hybrid if no back rack rail is mounted.

RACK FRONT & BACK LID DEPTH

The lid depth is measured on the inside of the lid. Usually, the front and back lid are built with the same depth. You can also choose different depths for the front and back lids. This can be useful if your equipment has knobs or handles on the front so you need a deeper front lid or if you need more space for the cables in the back and you need a deeper back lid.
Rack Lid Depth
Rack Rails

RACK RAILS

We use the infinite sliding rack rails where the hex nut is free to move along the rack rail. A special rubber insert (included) holds the hex nut in place. The double-sided rack rails come with a secondary channel on the inside, useful if your equipment has rack ears on the back. This option must be selected together with the back rack rail option also. After selecting the back rack rail and the double-sided rack rail options, please send us the brand and model of your equipment using the order comments field available at checkout. We will match the back rack rail with the fixing holes on your equipment's ears.

RACK RUBBER FEETS AND SKIDS

Choose between 4 rubber feets or 2 plywood skids 15 mm thick. The rubber feets should be used for racks that will hold lighter equipments. For heavier equipments, we recommend the plywood skids option. Castors are available only for the proLINE medium and long racks.
Rack Rubber Feets and Skids
Rack Labeling

RACK LABELING

You can choose between a self adhesive label, a recessed label dish or both of them. Our self adhesive labels are laminated with protective clear foil surface. They can be easily cleaned and re-used without print fade.

RACK ENGRAVING

Many of our images show flight cases engraved with brand and model or client logo. This is not included, our standard flight cases come without engraving. If you would like your flight case to be engraved with your company logo, please add this option to the cart. You will receive an email from us requesting a vector file with your logo. If you don't have a vector file, we can vectorise it for you for an extra fee. You will be informed on the additional price for vectorising your logo, as this differs depending on the complexity. If you only want the brand or model of the equipment engraved then simply add the engraving option to the cart and we will manage the rest.
Engraving is possible only for the birch plywood, not for plastic panels!
Rack Engraving
Rack Birch Plywood Colours Palette

RACK BIRCH PLYWOOD COLOURS PALETTE

Our birch plywood comes in a variety of colours for you to choose from. Our standard is the Black Hexa Design Plywood. Only the finish differs from colour to colour, the birch plywood used is the same. Do note that the production time and price will increase if you choose something different from our standard Black Hexa Design Plywood.

RACK PLASTIC PANELS (SolidLite® PP)

If you want to go for a lighter option, our SolidLite® PP weighs approx. 40% less than the birch plywood of equal strength. This eco-friendly-PP, 100% recyclable, has temperature, water, oil and chemicals resistance. The panels come in 7 mm and 10 mm thickness (same as birch plywood) and are coloured on both sides. The colour options are:
  • Black & Black
  • Black & Grey
  • Red & Blue
Rack Plastic Panels
