2U Rack ecoLINE 350 mm Usable Depth

was €171.36 Special Price €85.68 €72.00

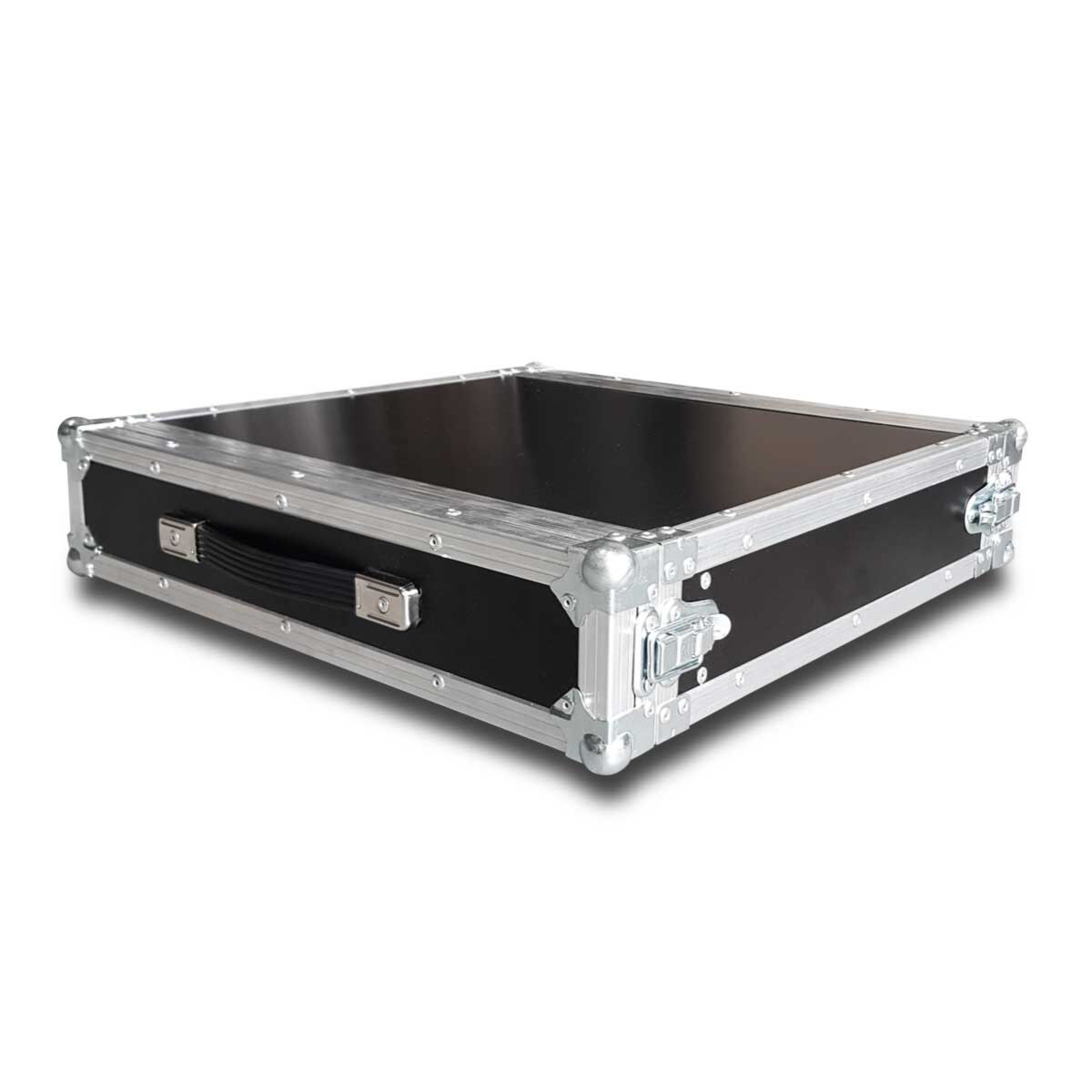

2U 19″ Rack ecoLINE, 350 mm usable depth, built from 7 mm birch plywood, with 2 lids and 1 handle on the front lid, to protect your equipment during usage, transport and storage.
Availability: Dispatches in 8-12 business days
SKU
2U-DDR-ECO-ST-350-35

2U 19″ Rack ecoLINE, 350 mm usable depth, built from 7 mm birch plywood, with 2 lids and 1 handle on the front lid, to protect your equipment during usage, transport and storage.

Do you need different specifications? You can always check out our range of custom double door racks.

SPECIFICATIONS

  • 350 mm Usable Depth
  • 35 mm Inside Lid Depth
  • Built from Dark-Brown 7 mm thick Birch Plywood, Plain Phenolic Resin Coated
  • 22×22 mm Aluminium Extrusions
  • Heavy Duty Galvanised Steel Corners
  • 1 Plastic Handle with Steel Reinforcement on the Inside Mounted on the Lid
  • 4 Large Galvanised Steel Drawbolts, Padlockable (padlock not included)
  • Front Mounted Heavy Duty Infinite Rack Strips with Fittings and Screws included
  • 4 Rubber Feets

DIMENSIONS & WEIGHT

(rubber feets included)

Dimensions (WxDxH): 554 x 488 x 136 mm
Weight: 6.10 kg

QUALITY COMPONENTS AND ATTENTION TO DETAIL

Our flight cases are designed and manufactured by engineers with relevant experience in the field of technical equipments, using only top quality components from Adam Hall and Penn Elcom. The production process is mostly automated and assisted by the CNC technology, giving a precise technological flow. With the help of automation, customised software and our more than 20 years of experience in production, we can offer you the best solutions for protecting your equipments, even in eXtreme conditions.
Flight Case Top Quality Components
Rack Usable Depth

RACK USABLE DEPTH

This rack comes with a 350 mm usable depth. The rack usable depth should be at least the same as the depth of your deepest equipment. If you want to leave some cables connected, you should add them to the depth (usually, 70 mm is enough for most of the connectors). The rack usable depth doesn't include the lids and is measured between the front and back rack rails or the inside edge of the closing hybrid if no back rack rail is mounted.

RACK LIDS DEPTH

Our rack comes with a 35 mm depth for the front and back lids. The lid depth is measured on the inside of the lid. The lids are identical so you can freely switch them between the front and back of the rack. When planning your lid depth, you should pay attention to your equipment. If it has knobs or handles on the front or if you need more space for the cables connected at the back of the equipment, you should choose a rack with enough lid depth for them.
Rack Lid Depth
Rack Plastic Handle

LIGHT PLASTIC HANDLE ON THE LID

This rack comes with a light plastic handle mounted on the lid. The plastic handle is reinforced with a steel insert and weights only 60 g.

PADLOCKABLE STEEL DRAWBOLTS

This rack comes with 4 large galvanised steel drawbolts with padlock eye. The padlock is not included.
Rack Padlockable Drawbolts
Rack Rubber Feets

RUBBER FEETS

Our rack comes with 4 rubber feets that protect the edges and prevent slipping.
